checkbox.c File Reference

Implementation of the CheckBox functions. More...

#include "checkbox.h"
#include "component.h"

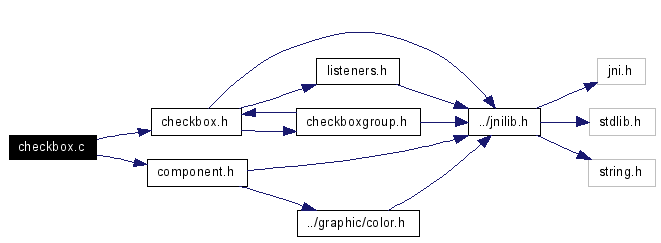

Include dependency graph for checkbox.c:

Go to the source code of this file.

Functions
ItemListener	addCheckBoxItemListener (CheckBox *checkbox, void(*func)(Component, jboolean, const char *))
	Adds an ItemListener for the CheckBox to call back the specified function.
void	createCheckBox_ (CheckBox *checkbox)
	Creates the CheckBox by getting the Java CheckBox-Class, the method ids and createing a new Java CheckBox-Object.
void	createCheckBoxC (CheckBox_ *checkbox)
	Function is called when working with C and calling the function createCheckBox.
void	createCheckBoxCPP (CheckBoxCPP_ *checkbox)
	Function is called when working with C++ and calling the function createCheckBox.
void	deleteCheckBox_ (CheckBox *checkbox)
	Deletes the CheckBox by deleting the global references.
void	deleteCheckBoxC (CheckBox_ *checkbox)
	Function is called when working with C and calling the function deleteCheckBox.
void	deleteCheckBoxCPP (CheckBoxCPP_ *checkbox)
	Function is called when working with C++ and calling the function deleteCheckBox.
jint	getCheckBoxHeight (CheckBox *checkbox)
	Gets the height of the CheckBox.
char *	getCheckBoxLabel (CheckBox *checkbox)
	Gets the label of the CheckBox.
jobject	getCheckBoxObject (CheckBox *checkbox)
	Gets the reference to the java checkbox object.
jboolean	getCheckBoxState (CheckBox *checkbox)
	Gets the state of the CheckBox.
jint	getCheckBoxWidth (CheckBox *checkbox)
	Gets the width of the CheckBox.
jint	getCheckBoxX (CheckBox *checkbox)
	Gets the X-Pos of the CheckBox.
jint	getCheckBoxY (CheckBox *checkbox)
	Gets the Y-Pos of the CheckBox.
void	initCheckBox_ (CheckBox_ *checkbox)
	Initializes the CheckBox_ structure by setting the function pointers.
void	removeCheckBoxItemListener (CheckBox *checkbox, ItemListener il)
	Removes an ItemListener from the CheckBox and deletes the global reference to the ItemListener.
void	setCheckBoxCheckBoxGroup (CheckBox *checkbox, const CheckBoxGroup *checkboxgroup)
	Sets the CheckBoxGroup of the CheckBox.
void	setCheckBoxLabel (CheckBox *checkbox, const char *label)
	Sets the label of the CheckBox.
void	setCheckBoxLocation (CheckBox *checkbox, jint x, jint y)
	Sets the location of the CheckBox.
void	setCheckBoxSize (CheckBox *checkbox, jint width, jint height)
	Sets Size of the CheckBox.
void	setCheckBoxState (CheckBox *checkbox, jboolean state)
	Sets the state of the CheckBox.

---

Detailed Description

Implementation of the CheckBox functions.

A Checkbox is an control element which can be selected and deselceted. It can be member of a Checkboxgroup, then only one Checkbox of the group can be checked.

Author:

Stefan Gruber

Date:

20.02.2005

Definition in file checkbox.c.

---

Function Documentation

ItemListener addCheckBoxItemListener (  CheckBox *  checkbox, void(*)(Component, jboolean, const char *)  func )

Adds an ItemListener for the CheckBox to call back the specified function. For more information see: addItemListener Parameters: checkbox  - The CheckBox to add the checkboxener to. func  - The function to call back. Returns: the created ItemListener object. See also: removeCheckBoxItemListener(CheckBox* checkbox, ItemListener il) Definition at line 192 of file checkbox.c.

void createCheckBox_ (  CheckBox *  checkbox  )

Creates the CheckBox by getting the Java CheckBox-Class, the method ids and createing a new Java CheckBox-Object. Parameters: checkbox  - The CheckBox to create. Definition at line 237 of file checkbox.c.

void createCheckBoxC (  CheckBox_ *  checkbox  )

Function is called when working with C and calling the function createCheckBox. It initializes the CheckBox_ structure. Parameters: checkbox  - A pointer to a CheckBox_ structure. Definition at line 266 of file checkbox.c.

void createCheckBoxCPP (  CheckBoxCPP_ *  checkbox  )

Function is called when working with C++ and calling the function createCheckBox. It initializes the CheckBoxCPP_ structure. Parameters: checkbox  - A pointer to a CheckBoxCPP_ structure. Definition at line 254 of file checkbox.c.

void deleteCheckBox_ (  CheckBox *  checkbox  )

Deletes the CheckBox by deleting the global references. Parameters: checkbox  - A pointer to a checkbox. Definition at line 276 of file checkbox.c.

void deleteCheckBoxC (  CheckBox_ *  checkbox  )

Function is called when working with C and calling the function deleteCheckBox. Parameters: checkbox  - A pointer to a CheckBox_ structure. Definition at line 296 of file checkbox.c.

void deleteCheckBoxCPP (  CheckBoxCPP_ *  checkbox  )

Function is called when working with C++ and calling the function deleteCheckBox. Parameters: checkbox  - A pointer to a CheckBoxCPP_ structure. Definition at line 286 of file checkbox.c.

jint getCheckBoxHeight (  CheckBox *  checkbox  )

Gets the height of the CheckBox. Parameters: checkbox  - Pointer to the checkbox. Returns: the current height of the CheckBox. See also: setCheckBoxSize(CheckBox* checkbox, jint width, jint height) getCheckBoxWidth(CheckBox* checkbox) Definition at line 68 of file checkbox.c.

char* getCheckBoxLabel (  CheckBox *  checkbox  )

Gets the label of the CheckBox. Parameters: checkbox  - Pointer to the checkbox. Returns: the label of the checkbox. See also: setCheckBoxLabel(CheckBox* checkbox, const char* label) Definition at line 137 of file checkbox.c.

jobject getCheckBoxObject (  CheckBox *  checkbox  )

Gets the reference to the java checkbox object. Parameters: checkbox  - Pointer to the checkbox. Returns: the checkbox object reference. Definition at line 26 of file checkbox.c.

jboolean getCheckBoxState (  CheckBox *  checkbox  )

Gets the state of the CheckBox. Parameters: checkbox  - Pointer to the checkbox. Returns: the state of the checkbox. See also: setCheckBoxState(CheckBox* checkbox, jboolean state) Definition at line 167 of file checkbox.c.

jint getCheckBoxWidth (  CheckBox *  checkbox  )

Gets the width of the CheckBox. Parameters: checkbox  - Pointer to the checkbox. Returns: the current width of the CheckBox. See also: setCheckBoxSize(CheckBox* checkbox, jint width, jint height) getCheckBoxHeight(CheckBox* checkbox) Definition at line 54 of file checkbox.c.

jint getCheckBoxX (  CheckBox *  checkbox  )

Gets the X-Pos of the CheckBox. Parameters: checkbox  - Pointer to the checkbox. Returns: the current X-Pos of the checkbox. See also: setCheckBoxLocation(CheckBox* checkbox, jint x, jint y) getCheckBoxY(CheckBox* checkbox) Definition at line 96 of file checkbox.c.

jint getCheckBoxY (  CheckBox *  checkbox  )

Gets the Y-Pos of the CheckBox. Parameters: checkbox  - Pointer to the checkbox. Returns: the current Y-Pos of the checkbox. See also: setCheckBoxLocation(CheckBox* checkbox, jint x, jint y) getCheckBoxX(CheckBox* checkbox) Definition at line 110 of file checkbox.c.

void initCheckBox_ (  CheckBox_ *  checkbox  )

Initializes the CheckBox_ structure by setting the function pointers. Parameters: checkbox  - A pointer to a CheckBox_ structure. Definition at line 214 of file checkbox.c.

void removeCheckBoxItemListener (  CheckBox *  checkbox, ItemListener  il )

Removes an ItemListener from the CheckBox and deletes the global reference to the ItemListener. Parameters: checkbox  - The Button to remove the checkboxener from. il  - The ItemListener to remove. See also: addCheckBoxItemListener(CheckBox* checkbox, void (*func)(Component, jboolean, const char*)) Definition at line 205 of file checkbox.c.

void setCheckBoxCheckBoxGroup (  CheckBox *  checkbox, const CheckBoxGroup *  checkboxgroup )

Sets the CheckBoxGroup of the CheckBox. Parameters: checkbox  - Pointer to the checkbox. checkboxgroup  - The CheckBoxGroup to set. Definition at line 177 of file checkbox.c.

void setCheckBoxLabel (  CheckBox *  checkbox, const char *  label )

Sets the label of the CheckBox. Parameters: checkbox  - Pointer to the checkbox. label  - The label to set. See also: getCheckBoxLabel(CheckBox* checkbox) Definition at line 122 of file checkbox.c.

void setCheckBoxLocation (  CheckBox *  checkbox, jint  x, jint  y )

Sets the location of the CheckBox. Parameters: checkbox  - Pointer to the checkbox. x  - New X-Pos. y  - New Y-Pos. See also: getCheckBoxX(CheckBox* checkbox) getCheckBoxY(CheckBox* checkbox) Definition at line 82 of file checkbox.c.

void setCheckBoxSize (  CheckBox *  checkbox, jint  width, jint  height )

Sets Size of the CheckBox. Parameters: checkbox  - Pointer to the checkbox. width  - New width. height  - New height. See also: getCheckBoxWidth(CheckBox* checkbox) getCheckBoxHeight(CheckBox* checkbox) Definition at line 40 of file checkbox.c.

void setCheckBoxState (  CheckBox *  checkbox, jboolean  state )

Sets the state of the CheckBox. Parameters: checkbox  - Pointer to the checkbox. state  - The state to set. See also: getCheckBoxState(CheckBox* checkbox) Definition at line 154 of file checkbox.c.

---
