frame.c File Reference

Implementation of the Frame functions. More...

#include "component.h"
#include "container.h"
#include "frame.h"

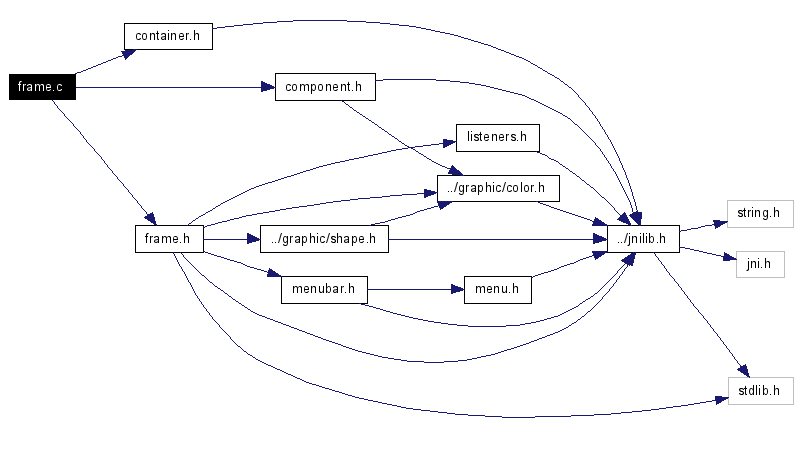

Include dependency graph for frame.c:

Go to the source code of this file.

Functions
void	addFrameComponent (Frame *frame, jobject comp)
	Adds a Component to the Frame.
ComponentListener	addFrameComponentListener (Frame *frame, void(*func)(jint, Component))
	Adds a ComponentListener for a Frame to call back the specified function.
void	addFrameComponentWithConstraint (Frame *frame, jobject comp, jobject constraint)
	Adds a Component to the Frame at a position.
MouseListener	addFrameMouseListener (Frame *frame, void(*func)(jint, Component, jint, jint, jint, jint))
	Adds a MouseListener for a Frame to call back the specified function.
WindowListener	addFrameWindowListener (Frame *frame, void(*func)(jint, Window))
	Adds a WindowListener for a Frame to call back the specified function.
void	clearFrameScreen (Frame *frame)
	Clears the screen of the Frame.
void	closeFrame (Frame *frame)
	Closes the Frame and releases all resources.
void	createFrame_ (Frame *frame)
	Creates the Frame by getting the Java Frame-Class, the method ids and createing a new Java Frame-Object.
void	createFrameC (Frame_ *frame)
	Function is called when working with C and calling the function createFrame.
void	createFrameCPP (FrameCPP_ *frame)
	Function is called when working with C++ and calling the function createFrame.
void	deleteFrame_ (Frame *frame)
	Deletes the Frame by deleting the global references.
void	deleteFrameC (Frame_ *frame)
	Function is called when working with C and calling the function deleteFrame.
void	deleteFrameCPP (FrameCPP_ *frame)
	Function is called when working with C++ and calling the function deleteFrame.
void	drawFrameEllipse (Frame *frame, jfloat x, jfloat y, jfloat width, jfloat height, jboolean filled, const Color *c)
	Draws an ellipse on the Frame.
void	drawFrameLine (Frame *frame, jfloat x1, jfloat y1, jfloat x2, jfloat y2, const Color *c)
	Draws a line on the Frame.
void	drawFrameRectangle (Frame *frame, jfloat x, jfloat y, jfloat width, jfloat height, jboolean filled, const Color *c)
	Draws a rectangle on the Frame.
void	drawFrameShape (Frame *frame, const Shape *s)
	Draws a Shape on the Frame.
void	drawFrameString (Frame *frame, const char *text, jfloat x, jfloat y, const Color *c)
	Draws a text on the Frame.
Color	getFrameBackgroundColor (Frame *frame)
	Gets the background color of the Frame.
Color	getFrameForegroundColor (Frame *frame)
	Gets the foreground color of the Frame.
jint	getFrameHeight (Frame *frame)
	Gets the height of the Frame.
jint	getFrameState (Frame *frame)
	Gets the state of the Frame.
char *	getFrameTitle (Frame *frame)
	Gets the Title of the Frame.
jint	getFrameWidth (Frame *frame)
	Gets the width of the Frame.
jint	getFrameX (Frame *frame)
	Gets the X-Pos of the Frame.
jint	getFrameY (Frame *frame)
	Gets the Y-Pos of the Frame.
void	hideFrame (Frame *frame)
	Hides the Frame.
void	initFrame_ (Frame_ *frame)
	Initializes the Frame_ structure by setting the function pointers.
jboolean	isSameWindow (Frame *frame, Window window)
	Compares if the windows are the same.
void	removeFrameComponentListener (Frame *frame, ComponentListener cl)
	Removes a ComponentListener from a Frame and deletes the global reference to the ComponentListener.
void	removeFrameMouseListener (Frame *frame, MouseListener ml)
	Removes a MouseListener from a Frame and deletes the global reference to the MouseListener.
void	removeFrameWindowListener (Frame *frame, WindowListener wl)
	Removes a WindowListener from a Frame and deletes the global reference to the WindowListener.
void	setFrameBackgroundColor (Frame *frame, const Color c)
	Sets the background color of the Frame.
void	setFrameForegroundColor (Frame *frame, const Color c)
	Sets the foreground color of the Frame.
void	setFrameLayout (Frame *frame, jobject layoutmanager)
	Sets a LayoutManager to the Frame.
void	setFrameLocation (Frame *frame, jint x, jint y)
	Sets the location of the Frame.
void	setFrameMenuBar (Frame *frame, MenuBar *menubar)
	Sets the MenuBar of the Frame.
void	setFrameSize (Frame *frame, jint width, jint height)
	Sets Size of the Frame.
void	setFrameState (Frame *frame, jint state)
	Sets the state of the Frame.
void	setFrameTitle (Frame *frame, const char *title)
	Sets the Title of the Frame.
void	showFrame (Frame *frame)
	Shows the Frame.

---

Detailed Description

Implementation of the Frame functions.

A Frame is a container where you can place control elements or draw on it. The Frame structures permit access to the methods of an AWT Frame. You can change its appearance, add control elements, draw on it, etc.

For more information about the AWT Frame have a look at Sun's Java API documentation.

Author:

Stefan Gruber

Date:

11.01.2005

Definition in file frame.c.

---

Function Documentation

void addFrameComponent (  Frame *  frame, jobject  comp )

Adds a Component to the Frame. Parameters: frame  - The frame to draw on. comp  - The Component to add. See also: addFrameComponentWithConstraint(Frame* frame, jobject comp, jobject constraint) Definition at line 465 of file frame.c.

ComponentListener addFrameComponentListener (  Frame *  frame, void(*)(jint, Component)  func )

Adds a ComponentListener for a Frame to call back the specified function. For more information see: addComponentListener Parameters: frame  - The frame to add the listener to. func  - The function to call back. Returns: the created ComponentListener object. See also: removeFrameComponentListener(Frame* frame, ComponentListener cl) Definition at line 344 of file frame.c.

void addFrameComponentWithConstraint (  Frame *  frame, jobject  comp, jobject  constraint )

Adds a Component to the Frame at a position. Parameters: frame  - The frame to draw on. comp  - The Component to add. constraint  - The constraint for the LayoutManager. See also: addFrameComponent(Frame* frame, jobject comp) Definition at line 478 of file frame.c.

MouseListener addFrameMouseListener (  Frame *  frame, void(*)(jint, Component, jint, jint, jint, jint)  func )

Adds a MouseListener for a Frame to call back the specified function. For more information see: addMouseListener Parameters: frame  - The frame to add the listener to. func  - The function to call back. Returns: the created MouseListener object. See also: removeFrameMouseListener(Frame* frame, MouseListener ml) Definition at line 316 of file frame.c.

WindowListener addFrameWindowListener (  Frame *  frame, void(*)(jint, Window)  func )

Adds a WindowListener for a Frame to call back the specified function. For more information see: addWindowListener Parameters: frame  - The frame to add the listener to. func  - The function to call back. Returns: the created WindowListener object. See also: removeFrameWindowListener(Frame* frame, WindowListener wl) Definition at line 288 of file frame.c.

void clearFrameScreen (  Frame *  frame  )

Clears the screen of the Frame. Parameters: frame  - The frame to draw on. Definition at line 433 of file frame.c.

void closeFrame (  Frame *  frame  )

Closes the Frame and releases all resources. Attention: The frame can not be displayed anymore after calling this function. Parameters: frame  - Pointer to the frame. See also: showFrame(Frame* frame) hideFrame(Frame* frame) Definition at line 58 of file frame.c.

void createFrame_ (  Frame *  frame  )

Creates the Frame by getting the Java Frame-Class, the method ids and createing a new Java Frame-Object. Parameters: frame  - The Frame to create. Definition at line 536 of file frame.c.

void createFrameC (  Frame_ *  frame  )

Function is called when working with C and calling the function createFrame. It initializes the Frame_ structure. Parameters: frame  - A pointer to a Frame_ structure. Definition at line 579 of file frame.c.

void createFrameCPP (  FrameCPP_ *  frame  )

Function is called when working with C++ and calling the function createFrame. It initializes the FrameCPP_ structure. Parameters: frame  - A pointer to a FrameCPP_ structure. Definition at line 567 of file frame.c.

void deleteFrame_ (  Frame *  frame  )

Deletes the Frame by deleting the global references. Parameters: frame  - A pointer to a frame. Definition at line 589 of file frame.c.

void deleteFrameC (  Frame_ *  frame  )

Function is called when working with C and calling the function deleteFrame. Parameters: frame  - A pointer to a Frame_ structure. Definition at line 609 of file frame.c.

void deleteFrameCPP (  FrameCPP_ *  frame  )

Function is called when working with C++ and calling the function deleteFrame. Parameters: frame  - A pointer to a FrameCPP_ structure. Definition at line 599 of file frame.c.

void drawFrameEllipse (  Frame *  frame, jfloat  x, jfloat  y, jfloat  width, jfloat  height, jboolean  filled, const Color *  c )

Draws an ellipse on the Frame. Parameters: frame  - The frame to draw on. x  - The x-coordinate of the initial point. y  - The y-coordinate of the initial point. width  - The width of the rectangle surrounding the ellipse. height  - The height of the rectangle surrounding the ellipse.. filled  - If JNI_TRUE the ellipse gets filled out, if JNI_FALSE only the border is drawn. c  - The color of the line. If it ist a NULL-Pointer the foreground color is used. Definition at line 405 of file frame.c.

void drawFrameLine (  Frame *  frame, jfloat  x1, jfloat  y1, jfloat  x2, jfloat  y2, const Color *  c )

Draws a line on the Frame. Parameters: frame  - The frame to draw on. x1  - The x-coordinate of the initial point. y1  - The y-coordinate of the initial point. x2  - The x-coordinate of the endpoint. y2  - The y-coordinate of the endpoint. c  - The color of the line. If it ist a NULL-Pointer the foreground color is used. Definition at line 371 of file frame.c.

void drawFrameRectangle (  Frame *  frame, jfloat  x, jfloat  y, jfloat  width, jfloat  height, jboolean  filled, const Color *  c )

Draws a rectangle on the Frame. Parameters: frame  - The frame to draw on. x  - The x-coordinate of the initial point. y  - The y-coordinate of the initial point. width  - The width of the rectangle. height  - The height of the rectangle. filled  - If JNI_TRUE the rectangle gets filled out, if JNI_FALSE only the border is drawn. c  - The color of the line. If it ist a NULL-Pointer the foreground color is used. Definition at line 388 of file frame.c.

void drawFrameShape (  Frame *  frame, const Shape *  s )

Draws a Shape on the Frame. Parameters: frame  - The frame to draw on. s  - The shape to draw. Definition at line 443 of file frame.c.

void drawFrameString (  Frame *  frame, const char *  text, jfloat  x, jfloat  y, const Color *  c )

Draws a text on the Frame. Parameters: frame  - The frame to draw on. text  - The text to draw. x  - The x-coordinate of the initial point. y  - The y-coordinate of the initial point. c  - The color of the line. If it ist a NULL-Pointer the foreground color is used. Definition at line 420 of file frame.c.

Color getFrameBackgroundColor (  Frame *  frame  )

Gets the background color of the Frame. Parameters: frame  - Pointer to the frame. Returns: the current color of th Frame as struct Color. See also: setFrameBackgroundColor(Frame* frame, Color c) Definition at line 224 of file frame.c.

Color getFrameForegroundColor (  Frame *  frame  )

Gets the foreground color of the Frame. Parameters: frame  - Pointer to the frame. Returns: the current color of th Frame as struct Color. See also: setFrameForegroundColor(Frame* frame, Color c) Definition at line 199 of file frame.c.

jint getFrameHeight (  Frame *  frame  )

Gets the height of the Frame. Parameters: frame  - Pointer to the frame. Returns: the current height of the Frame. See also: setFrameSize(Frame* frame, jint width, jint height) getFrameWidth(Frame* frame) Definition at line 132 of file frame.c.

jint getFrameState (  Frame *  frame  )

Gets the state of the Frame. Parameters: frame  - Pointer to the frame. Returns: the current state (see FRAME_STATE_XXX). See also: setFrameState(Frame* frame, jint state) Definition at line 249 of file frame.c.

char* getFrameTitle (  Frame *  frame  )

Gets the Title of the Frame. Parameters: frame  - Pointer to the frame. Returns: a char* with the current title. See also: setFrameTitle(Frame* frame, const char* title) Definition at line 85 of file frame.c.

jint getFrameWidth (  Frame *  frame  )

Gets the width of the Frame. Parameters: frame  - Pointer to the frame. Returns: the current width of the Frame. See also: setFrameSize(Frame* frame, jint width, jint height) getFrameHeight(Frame* frame) Definition at line 118 of file frame.c.

jint getFrameX (  Frame *  frame  )

Gets the X-Pos of the Frame. Parameters: frame  - Pointer to the frame. Returns: the current X-Pos of the frame. See also: setFrameLocation(Frame* frame, jint x, jint y) getFrameY(Frame* frame) Definition at line 160 of file frame.c.

jint getFrameY (  Frame *  frame  )

Gets the Y-Pos of the Frame. Parameters: frame  - Pointer to the frame. Returns: the current Y-Pos of the frame. See also: setFrameLocation(Frame* frame, jint x, jint y) getFrameX(Frame* frame) Definition at line 174 of file frame.c.

void hideFrame (  Frame *  frame  )

Hides the Frame. Parameters: frame  - Pointer to the frame. See also: showFrame(Frame* frame) closeFrame(Frame* frame) Definition at line 44 of file frame.c.

void initFrame_ (  Frame_ *  frame  )

Initializes the Frame_ structure by setting the function pointers. Parameters: frame  - A pointer to a Frame_ structure. Definition at line 487 of file frame.c.

jboolean isSameWindow (  Frame *  frame, Window  window )

Compares if the windows are the same. Parameters: frame  - Pointer to the frame. window  - A Java-Object to compare with. Returns: JNI_TRUE if the same, otherwise JNI_FALSE. Definition at line 273 of file frame.c.

void removeFrameComponentListener (  Frame *  frame, ComponentListener  cl )

Removes a ComponentListener from a Frame and deletes the global reference to the ComponentListener. Parameters: frame  - The frame to remove the listener from. cl  - The ComponentListener to remove. See also: addFrameComponentListener(Frame* frame, void (*func)(jint, Component)) Definition at line 357 of file frame.c.

void removeFrameMouseListener (  Frame *  frame, MouseListener  ml )

Removes a MouseListener from a Frame and deletes the global reference to the MouseListener. Parameters: frame  - The frame to remove the listener from. ml  - The MouseListener to remove. See also: addFrameMouseListener(Frame* frame, void (*func)(jint, Component, jint, jint, jint, jint)) Definition at line 329 of file frame.c.

void removeFrameWindowListener (  Frame *  frame, WindowListener  wl )

Removes a WindowListener from a Frame and deletes the global reference to the WindowListener. Parameters: frame  - The frame to remove the listener from. wl  - The WindowListener to remove. See also: addFrameWindowListener(Frame* frame, void (*func)(jint, Window)) Definition at line 301 of file frame.c.

void setFrameBackgroundColor (  Frame *  frame, const Color  c )

Sets the background color of the Frame. Parameters: frame  - Pointer to the frame. c  - The new Color. See also: getFrameBackgroundColor(Frame* frame) Definition at line 211 of file frame.c.

void setFrameForegroundColor (  Frame *  frame, const Color  c )

Sets the foreground color of the Frame. Parameters: frame  - Pointer to the frame. c  - The new Color. See also: getFrameForegroundColor(Frame* frame) Definition at line 186 of file frame.c.

void setFrameLayout (  Frame *  frame, jobject  layoutmanager )

Sets a LayoutManager to the Frame. Parameters: frame  - The Container to add the Component to. layoutmanager  - The LayoutManager to set. Definition at line 453 of file frame.c.

void setFrameLocation (  Frame *  frame, jint  x, jint  y )

Sets the location of the Frame. Parameters: frame  - Pointer to the frame. x  - New X-Pos. y  - New Y-Pos. See also: getFrameX(Frame* frame) getFrameY(Frame* frame) Definition at line 146 of file frame.c.

void setFrameMenuBar (  Frame *  frame, MenuBar *  menubar )

Sets the MenuBar of the Frame. Parameters: frame  - Pointer to the frame. menubar  - The MenuBar to set. See also: getFrameState(Frame* frame) Definition at line 261 of file frame.c.

void setFrameSize (  Frame *  frame, jint  width, jint  height )

Sets Size of the Frame. Parameters: frame  - Pointer to the frame. width  - New width. height  - New height. See also: getFrameWidth(Frame* frame) getFrameHeight(Frame* frame) Definition at line 104 of file frame.c.

void setFrameState (  Frame *  frame, jint  state )

Sets the state of the Frame. Parameters: frame  - Pointer to the frame. state  - The new state (see FRAME_STATE_XXX). See also: getFrameState(Frame* frame) Definition at line 236 of file frame.c.

void setFrameTitle (  Frame *  frame, const char *  title )

Sets the Title of the Frame. Parameters: frame  - Pointer to the frame. title  - The new title. See also: getFrameTitle(Frame* frame) Definition at line 70 of file frame.c.

void showFrame (  Frame *  frame  )

Shows the Frame. Parameters: frame  - Pointer to the frame. See also: hideFrame(Frame* frame) closeFrame(Frame* frame) Definition at line 32 of file frame.c.

---
