frame.h File Reference

Descripes the Frame structures, functions and constants. More...

#include <stdlib.h>
#include "../jnilib.h"
#include "listeners.h"
#include "../graphic/color.h"
#include "../graphic/shape.h"
#include "menubar.h"

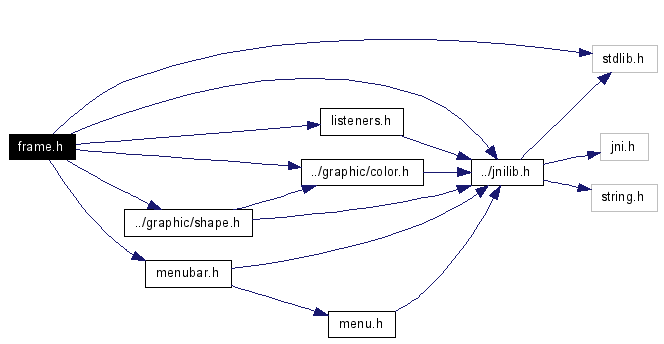

Include dependency graph for frame.h:

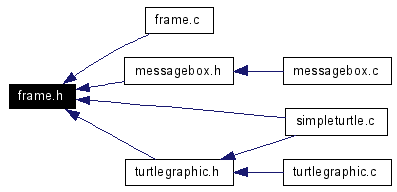

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	Frame_
	A structure for C, which describes the Frame. More...
struct	FrameCPP_
	A structure for C++, which describes the Frame. More...
struct	FrameData
	This structure holds the data needed for the Frame for C and C++. More...
Defines
#define	CLS_FRAME   "at/fhv/sgr/guilib/Frame"
	Defines the full name of the Frame-Class.
#define	createFrame   createFrameC
	Defines which function to call when createFrame is called.
#define	deleteFrame   deleteFrameC
	Defines which function to call when deleteFrame is called.
#define	FRAME_STATE_MAXIMIZED   3
#define	FRAME_STATE_MINIMIZED   2
#define	FRAME_STATE_NORMAL   1
#define	WAIT_UNTIL_TRUE(b)   while (!b) { jnisleep(100); }
	This Macro waits until the parameter is true.
Typedefs
typedef Frame_	Frame
	Defines which structure is used as Frame.
typedef Frame_	Frame_
	A structure for C, which describes the Frame.
typedef FrameCPP_	FrameCPP_
	A structure for C++, which describes the Frame.
typedef FrameData	FrameData
	This structure holds the data needed for the Frame for C and C++.
Functions
void	createFrameC (Frame_ *frame)
	Function is called when working with C and calling the function createFrame.
void	createFrameCPP (FrameCPP_ *frame)
	Function is called when working with C++ and calling the function createFrame.
void	deleteFrameC (Frame_ *frame)
	Function is called when working with C and calling the function deleteFrame.
void	deleteFrameCPP (FrameCPP_ *frame)
	Function is called when working with C++ and calling the function deleteFrame.

---

Detailed Description

Descripes the Frame structures, functions and constants.

A Frame is a container where you can place control elements or draw on it. The Frame structures permit access to the methods of an AWT Frame. You can change its appearance, add control elements, draw on it, etc.

For more information about the AWT Frame have a look at Sun's Java API documentation.

Author:

Stefan Gruber

Date:

11.01.2005

Definition in file frame.h.

---

Define Documentation

#define CLS_FRAME   "at/fhv/sgr/guilib/Frame"

Defines the full name of the Frame-Class. Definition at line 32 of file frame.h.

#define createFrame   createFrameC

Defines which function to call when createFrame is called. Definition at line 48 of file frame.h.

#define deleteFrame   deleteFrameC

Defines which function to call when deleteFrame is called. Definition at line 49 of file frame.h.

#define FRAME_STATE_MAXIMIZED   3

Definition at line 36 of file frame.h.

#define FRAME_STATE_MINIMIZED   2

Definition at line 35 of file frame.h.

#define FRAME_STATE_NORMAL   1

Definition at line 34 of file frame.h.

#define WAIT_UNTIL_TRUE (  b   )     while (!b) { jnisleep(100); }

This Macro waits until the parameter is true. Definition at line 53 of file frame.h.

---

Typedef Documentation

typedef struct Frame_ Frame

Defines which structure is used as Frame. Definition at line 47 of file frame.h.

typedef struct Frame_ Frame_

A structure for C, which describes the Frame.

typedef struct FrameCPP_ FrameCPP_

A structure for C++, which describes the Frame.

typedef struct FrameData FrameData

This structure holds the data needed for the Frame for C and C++.

---

Function Documentation

void createFrameC (  Frame_ *  frame  )

Function is called when working with C and calling the function createFrame. It initializes the Frame_ structure. Parameters: frame  - A pointer to a Frame_ structure. Definition at line 579 of file frame.c.

void createFrameCPP (  FrameCPP_ *  frame  )

Function is called when working with C++ and calling the function createFrame. It initializes the FrameCPP_ structure. Parameters: frame  - A pointer to a FrameCPP_ structure. Definition at line 567 of file frame.c.

void deleteFrameC (  Frame_ *  frame  )

Function is called when working with C and calling the function deleteFrame. Parameters: frame  - A pointer to a Frame_ structure. Definition at line 609 of file frame.c.

void deleteFrameCPP (  FrameCPP_ *  frame  )

Function is called when working with C++ and calling the function deleteFrame. Parameters: frame  - A pointer to a FrameCPP_ structure. Definition at line 599 of file frame.c.

---
